Kestel Dam


Afyon, Turkey


General Directorate of State Hydraulic Works


2009 - 2010

Description of Kestel Dam Project

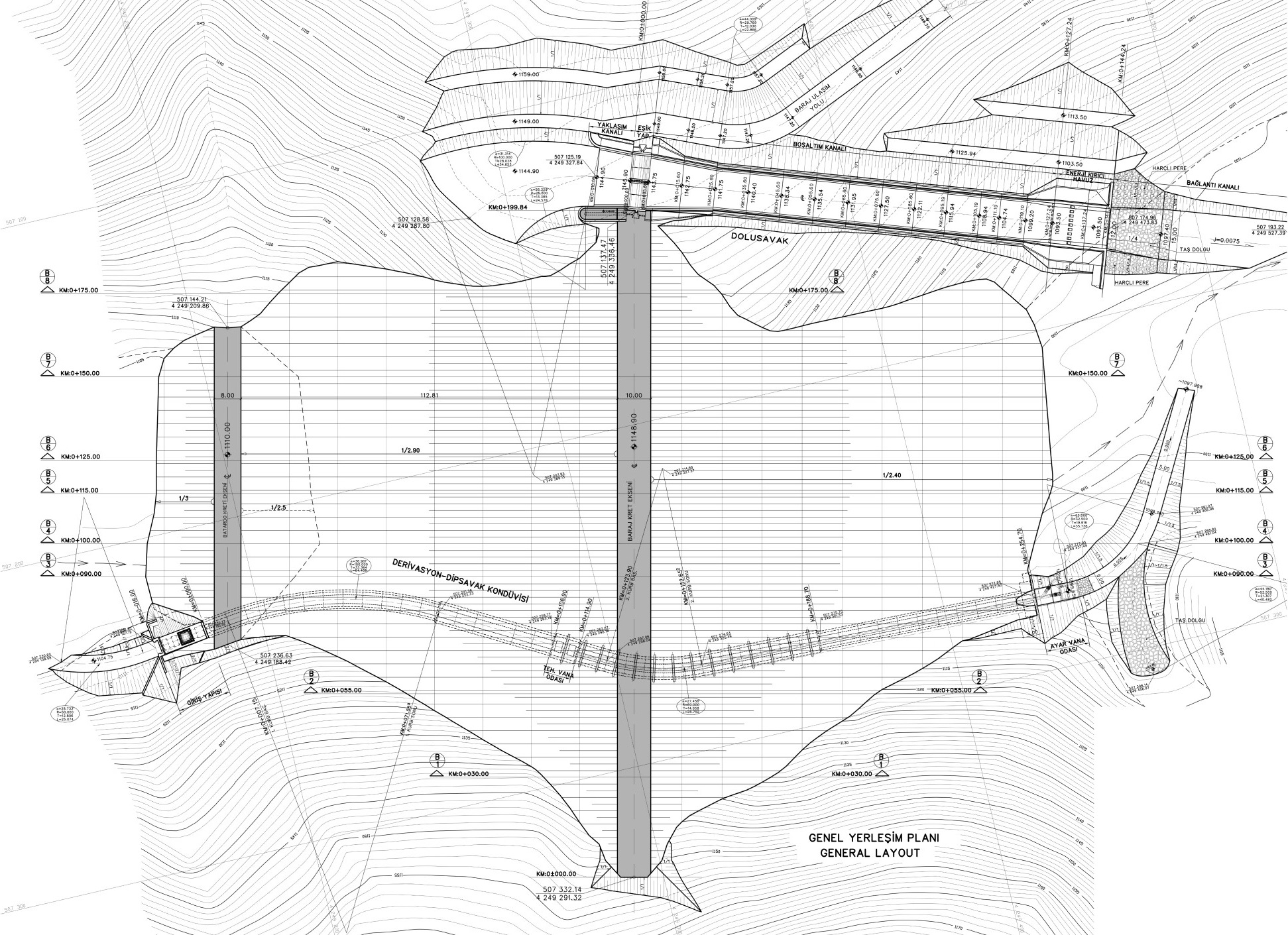

Dam is designed as a clay core sandy-gravel fill type. Within the scope of the project, dam body, cofferdams, spillway, bottom outlet, diversion conduit, intake structure, downstream channel improvement, material access roads, main access road,s electrical and mechanical final design drawings have been prepared. Topographic surveys, geotechnical investigations, determining barrow areas of construction materials, hydraulic studies, dam body static-dynamic analysis, seismic hazard analysis, related cost analysis, financial and economic analysis are among the services provided.

Main Features

  • Dam body type: Clay Core Sandy-Gravel Fill Dam
  • Height from the foundation: 59.00 m
  • Maximum storage volume: 9.90 million m³
  • Dam fill volume: 715,000 m³
